Casino Gaming: Safely Operate with Instant, Accurate Temperature Screening Solutions

juin 30, 2020

Hikvision HikWire blog article casino thermographic brochure

As casinos get back to business, instant and accurate temperature pre-screening can enable safe reopening and operation. Hikvision’s new brochure available online provides details on how our Highly Accurate Thermographic (HAT) Cameras can help casino owners and managers better protect staff, employees, visitors and patrons.

Easy-to-operate Hikvision temperature detection cameras can provide advanced screening, especially for high traffic casino entrances and gaming floors. Thermal cameras can help with easy and quick pre-screening of skin-temperature for employees, visitors, and patrons before they enter your building. Pre-screening takes less than one second, is highly accurate, and it offers contactless measurement from a distance.

Other benefits include:

Mitigated Risk of Exposure
Extremely Safe—Contactless Measurement from a Distance
Instant One-Second Screening
Smart -- Screens Human Skin Surface
Accurate up to ± 0.5 Degrees Fahrenheit with Blackbody Calibrator

With advanced detectors and algorithms, our Highly Accurate Thermographic Cameras can be used for immediate detection and preliminary screening of elevated skin-surface temperature with accuracy up to ± 0.9 degrees Fahrenheit (± 0.5 degrees Celsius), and can reach up to 0.5 degrees Fahrenheit (± 0.3 degrees Celsius) using the Hikvision Blackbody Calibrator accessory.

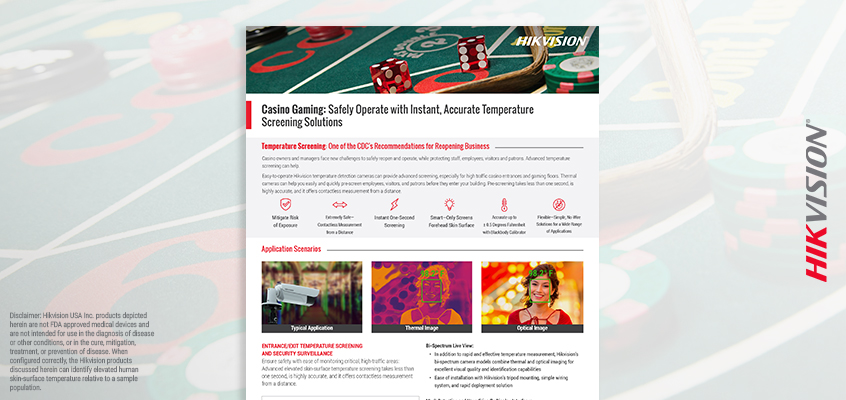

Download a copy of our new brochure here: “Casino Gaming: Safely Operate with Instant, Accurate Temperature Screening Solutions.”

Disclaimer: Hikvision USA Inc. products depicted herein are not FDA approved medical devices and are not intended for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of disease. When configured correctly, the Hikvision products discussed herein can identify elevated human skin-surface temperature relative to a sample population.

Nouvelles de l'entreprise

View the most updated version of this document here:

https://techsupportca.freshdesk.com/en/support/solutions/articles/17000113531-i-series-nvr-firmware-upgrade-instructions

The I-series NVR (such as the DS-7716NI-I4) is one of Hikvision's most popular and feature-rich recorders. As such, many firmware revisions have been introduced over the years to continually ensure the product is compatible with the newest technology available. Due to the many revisions, we recommend that the user closely follows the instructions below in order to reduce the amount of time spent as well as the chance of failure.

Database Optimization and Repair

As more affordable IP cameras are introduced over time with greater video resolution and data sizes, more efficient database management also becomes necessary. The introduction of firmware v4.0 brought about a new database architecture in order to be futureproof.

After upgrading to v4.X, the recorder database will need to be converted and optimized. If you are experiencing issues where playback is expected but not found, make sure "Database Repair" is performed as indicated in the procedures and scenarios below.

Preparing the Upgrade

Before proceeding with upgrade, it is recommended that NVR configuration file is exported from the NVR over the network or on to a local USB drive.

Upgrading from v3.4.92 build 170518 or Older

All recorders must reach v3.4.92 before proceeding further. Upgrading from versions before v3.4.92 directly to any version of v4.X will likely cause the recorder to fail.
If the recorder is already at v3.4.92, a full factory default is highly recommended before upgrading to any version of v4.X. There is a high chance of unit failure (requiring RMA) if the unit is not defaulted before upgrade.
After reaching v3.4.92 and performing a full factory default, an upgrade directly to v4.50.00 is acceptable.
After the upgrade is completed and the recorder is reprogrammed, it may be beneficial to perform a Database Repair. For details, refer to the section "Database Optimization and Repair" above.
To verify repair progress, you may refer to the HDD status, or search the recorder log for repair started and stopped entries. Note that while the HDD is repairing, new recordings are still being made, but some existing recordings may not be searchable until repair is complete.
If you continue to observe playback issues after database repair, ensure there are no power, network, or motion detection issues. Should the problem persist, contact technical support.

Upgrading from Any v4.X Build to v4.50.00.

Any v4.X build can be upgraded directly to v4.50.00.
Export configuration is highly recommended before performing the upgrade.
If upgrading from any v4.X version that was not v4.22.005, a Database Repair is recommended. Refer to Step 4 and onwards in the previous section.

Downgrading

Downgrading is not recommended. Due to new features and parameters constantly being added, downgrading may cause the NVR to factory default itself or require a manual default to operate properly.

View the most updated version of this document here:
K-Series DVR upgrade instruction
The Turbo 4 Hybrid DVR K series has multiple models and across different platform and chipset. It also has similar firmware development of other recording product line; DVR K series has also introduced the GUI4.0 to ensure the series to be compatible to the newest technology available. The new database architecture is also brought into the DVR firmware v4.0 to be future proof and for better recording search experience.

Database Optimization and Repair

As more affordable cameras introduced over time with greater video resolution and data sizes, more efficient database management also becomes necessary. The introduction of firmware v4.0 brought about a new database architecture in order to be futureproof.
After upgrading to v4.X, the recorder database will need to be converted and optimize. If you are experiencing issues, where playback is expected but not found, please make sure to perform "Database Rebuild" as indicated in the procedures and scenarios below.

Preparing the Upgrade

Before proceeding with upgrade, it is recommend exporting DVR configuration file from the DVR over the network or on to a local USB drive.

Action after firmware upgraded

1. Upgrade the DVR according to the chart above.

2. Reconfirming Channel's Recording Schedule

- Confirm channel's recording schedule is enable.

- Check if the channel is on correct recording schedule.

3. Double Check Storage Setting

- Make sure all channel are assigned to record on its HDD group when the Storage setting is under Group Mode.

4. Perform Database Rebuild locally.

• Some version above support Database Rebuild via web access - K51 and K72

• Perform Database Rebuild regardless if system is having any database issue symptom.

• Database Rebuild process is average ~30 to 60min per TB. The process may still varies depends recording data.

• After Database Rebuild - Check log to confirm Database Rebuild has went thru properly.

• If Database Rebuild Started and Stopped log has been log only within few minutes. Database rebuild may not has been completed properly. It is strongly recommend performing the Database Rebuild again.

• To check log > System > Log > Information > Database Rebuild Started and Stopped.

• If the log option is not available - access system via SSH can also obtain similar result.

5. Recording Data is still missing after database rebuild process.

If the data has not been recorded or has been overwritten, Database rebuild process is not able retrieve those lost data. Have the system upgraded to the latest available firmware version above to prevent any future data lost is strongly recommended for all application.
